Solenoid valves : TECHNICAL DATA

1. 2 Positions 2 Ports & Single Solenoid, Vacuum Operable

Description: A compact ON/OFF valve designed specifically for vacuum applications. It allows or blocks flow in a circuit used for suction/gripping. The single solenoid with spring return ensures it fails to a safe (normally closed) state if power is lost.

Technical Specifications:

• Function: 2/2 Normally Closed (N.C.)
• Actuation: Single Solenoid, Spring Return
• Operating Pressure: -101 kPa to 0.9 MPa
• Port Sizes: M3, M5, Rc(PT) 1/8
• Flow Capacity: Cv = 0.07 to 0.15
• Voltage Options: 24VDC, 100/110VAC, 200/220VAC
• Power Consumption: 1.6W (DC), 2.2VA (AC)

Common Types:

• Direct Mount Type: With integrated push-in fittings.
• Manifold Mount Type: For centralized vacuum control systems.
• Plug-in Coil Type: For easy maintenance and replacement.

2. 2 Positions 2 Ports & Double Solenoid, Vacuum Operable

Description: A bistable ON/OFF vacuum valve that maintains its last position (open or closed) when de-energized. This "memory" function is ideal for energy-saving applications where the valve state must be held without continuous power.

Technical Specifications:

• Function: 2/2 Bistable
• Actuation: Double Solenoid, Maintained Position
• Operating Pressure: -101 kPa to 0.9 MPa
• Port Sizes: M3, M5, Rc(PT) 1/8
• Flow Capacity: Cv = 0.07 to 0.15
• Voltage Options: 24VDC, 100/110VAC, 200/220VAC
• Power Consumption: 1.6W (DC), 2.2VA (AC)

Common Types:

• Standard Double Solenoid Valve.
• Valve with Manual Override: For testing and setup without power.Special Features: Maintains position during power loss, vacuum compatible

3. 2 Positions 3 Ports & Single Solenoid N.C.

Description: The standard workhorse for controlling single-acting cylinders (spring-return) or providing pilot signals to other valves. In its normal state, the output is exhausted. When energized, pressure is applied to the output.

Technical Specifications:

• Function: 3/2 Normally Closed
• Actuation: Single Solenoid, Spring Return
• Operating Pressure: 0.1 to 0.9 MPa
• Port Sizes: M5, Rc(PT) 1/8
• Flow Capacity: Cv = 0.25 to 0.45
• Voltage Options: 24VDC, 100/110VAC, 200/220VAC
• Power Consumption: 1.6W (DC), 2.2VA (AC)

Common Types:

• Inline Body Type.
• Panel Mount Type.
• With Built-in Speed Controller: For controlling cylinder extension speed.

4. 2 Positions 3 Ports & Single Solenoid N.O.

Description: The inverse of the N.C. valve. In its normal state, pressure is applied to the output. When energized, the output is exhausted. Used for applications where the system should normally be pressurized.

Technical Specifications:

• Function: 3/2 Normally Open
• Actuation: Single Solenoid, Spring Return
• Operating Pressure: 0.1 to 0.9 MPa
• Port Sizes: M5, Rc(PT) 1/8
• Flow Capacity: Cv = 0.25 to 0.45
• Voltage Options: 24VDC, 100/110VAC, 200/220VAC
• Power Consumption: 1.6W (DC), 2.2VA (AC)

Common Types:

• Inline Body Type.
• Manifold Base Mount Type.

5. 2 Positions 3 Ports & Double Solenoid

Description: A 3-port valve that changes state with a pulse signal and remains in that position until the opposite solenoid is pulsed. Used for single-acting cylinders requiring a latching function.

Technical Specifications:

• Function: 3/2 Bistable
• Actuation: Double Solenoid, Maintained Position
• Operating Pressure: 0.1 to 0.9 MPa
• Port Sizes: M5, Rc(PT) 1/8
• Flow Capacity: Cv = 0.25 to 0.45
• Voltage Options: 24VDC, 100/110VAC, 200/220VAC
• Power Consumption: 1.6W (DC), 2.2VA (AC)

Common Types:

• Standard Double Solenoid 3/2 Valve.

6. 2 Positions 3 Ports & Single Solenoid, Vacuum Operable

Description: A 3/2 valve specifically engineered for vacuum circuits, commonly used to switch a vacuum gripper between "Suction" (vented) and "Release" (atmospheric pressure applied) states.

Technical Specifications:

• Function: 3/2 Normally Closed
• Actuation: Single Solenoid, Spring Return
• Operating Pressure: -101 kPa to 0.9 MPa
• Port Sizes: M5, Rc(PT) 1/8
• Flow Capacity: Cv = 0.25 to 0.45
• Voltage Options: 24VDC, 100/110VAC, 200/220VAC
• Power Consumption: 1.6W (DC), 2.2VA (AC)

Common Types:

• Vacuum Grip/Release Valve.
• Valve with Integrated Fittings for vacuum tubing.

7. 2 Positions 3 Ports & Double Solenoid, Vacuum Operable

Description: Provides latching control for vacuum circuits. A pulse to one solenoid engages vacuum, and it remains engaged until a pulse to the other solenoid releases it, conserving energy.

Technical Specifications:

• Function: 3/2 Bistable
• Actuation: Double Solenoid, Maintained Position
• Operating Pressure: -101 kPa to 0.9 MPa
• Port Sizes: M5, Rc(PT) 1/8
• Flow Capacity: Cv = 0.25 to 0.45
• Voltage Options: 24VDC, 100/110VAC, 200/220VAC
• Power Consumption: 1.6W (DC), 2.2VA (AC)

Common Types:

• Bistable Vacuum Valve.

Description: The standard valve for controlling double-acting cylinders with spring return. When de-energized, the spring returns the valve to its default position, retracting or extending the cylinder depending on the porting.

Technical Specifications:

• Function: 5/2 Monostable
• Actuation: Single Solenoid, Spring Return
• Operating Pressure: 0.1 to 0.9 MPa
• Port Sizes: Rc(PT) 1/8, 1/4
• Flow Capacity: Cv = 0.7 to 1.2
• Voltage Options: 24VDC, 100/110VAC, 200/220VAC
• Power Consumption: 1.6W (DC), 2.2VA (AC)

Common Types:

• Inline Ported Valve.
• Manifold Mount Valve.
• Valve with Optional Speed Control Knobs on exhaust ports.

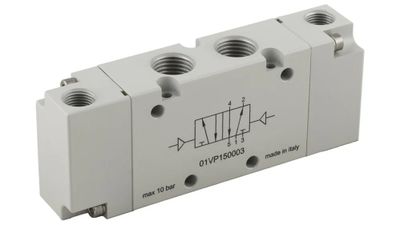

13. 2 Positions 5 Ports & Double Solenoid

Description: The most common valve for double-acting cylinder control. It changes position with a pulse signal and remains there, making it ideal for applications where the cylinder position must be maintained after a power loss.

Technical Specifications:

• Function: 5/2 Bistable
• Actuation: Double Solenoid, Maintained Position
• Operating Pressure: 0.1 to 0.9 MPa
• Port Sizes: Rc(PT) 1/8, 1/4
• Flow Capacity: Cv = 0.7 to 1.2
• Voltage Options: 24VDC, 100/110VAC, 200/220VAC
• Power Consumption: 1.6W (DC), 2.2VA (AC)

Common Types:

• Standard 5/2 Double Solenoid Valve.
• Valve with Manual Override.
• Low-Profile Manifold Valve.

14. 3 Positions 5 Ports & Closed Center

Description: When de-energized in the center position, this valve blocks all ports, trapping air in both sides of the cylinder. This holds the cylinder rigidly in its mid-stroke position (if internally sealed).

Technical Specifications:

• Function: 5/3 Closed Center
• Actuation: Double Solenoid, Spring Centered
• Operating Pressure: 0.1 to 0.9 MPa
• Port Sizes: Rc(PT) 1/8, 1/4
• Flow Capacity: Cv = 0.7 to 1.2
• Voltage Options: 24VDC, 100/110VAC, 200/220VAC
• Power Consumption: 1.6W (DC), 2.2VA (AC)

Common Types:

• Closed Center Mid-position Valve.

15. 3 Positions 5 Ports & Exhaust Center

Description: In the center position, pressure is blocked and both cylinder ports are exhausted to atmosphere. This allows the cylinder to be moved freely ("float") by external force, which is useful for manual positioning or safety.

Technical Specifications:

• Function: 5/3 Exhaust Center
• Actuation: Double Solenoid, Spring Centered
• Operating Pressure: 0.1 to 0.9 MPa
• Port Sizes: Rc(PT) 1/8, 1/4
• Flow Capacity: Cv = 0.7 to 1.2
• Voltage Options: 24VDC, 100/110VAC, 200/220VAC
• Power Consumption: 1.6W (DC), 2.2VA (AC)

Common Types:

• Exhaust Center Mid-position Valve

16. 3 Positions 5 Ports & Pressure Center

Description: In the center position, pressure is applied to both sides of the cylinder simultaneously. This creates a hydraulic lock, balancing the piston and holding it in place with equal force, which is useful for stopping in mid-stroke.

Technical Specifications:

• Function: 5/3 Pressure Center
• Actuation: Double Solenoid, Spring Centered
• Operating Pressure: 0.1 to 0.9 MPa
• Port Sizes: Rc(PT) 1/8, 1/4
• Flow Capacity: Cv = 0.7 to 1.2
• Voltage Options: 24VDC, 100/110VAC, 200/220VAC
• Power Consumption: 1.6W (DC), 2.2VA (AC)

Common Types:

• Pressure Center Mid-position Valve
